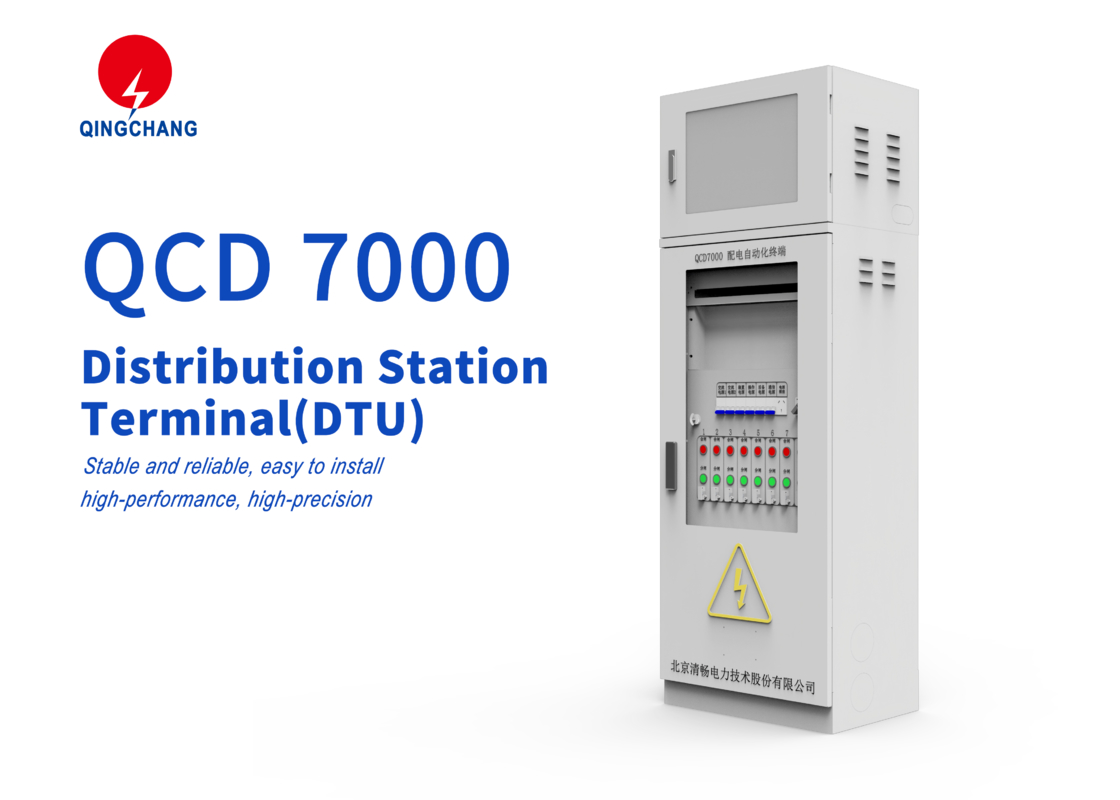

QCD 7000 Series Distribution Station Terminal DTU

Product Overview

The QCD7000 distribution automation station terminal is a self-developed remote terminal for distribution automation systems based on the construction and development of smart grids. It meets the requirements of the "Standardized Design Scheme for 12 kV Primary and Secondary Integration Ring Main Unit (Box) and Distribution Automation Terminal Unit (DTU) (2021 Edition)". This device follows the modular plug-in design concept and adopts a high-speed and strong anti-interference field bus design. It is suitable for distribution network ring main units or switching stations, and can achieve information collection and control of multiple lines, as well as fault detection, positioning, isolation, and non fault area power supply recovery. It can effectively improve the reliability of the power supply system and shorten the fault handling time.

Product Features

Modularization

The product adopts modular and expandable design, which is composed of a core unit, a power module, a backup power supply and a cabinet.

Standardization

Taking into account the operational habits and functional performance requirements of different regions, with standardized structures and interfaces, it meets the needs for modular replacement and standardized operation and maintenance.

Reliability

Each module adopts industrial grade design, with aviation plug connection method, and the protection rating can reach IP65.

Advancement

It meets the technical requirements of primary and secondary integration, as well as integration of protection and testing, catering to the development requirements of digital distribution networks, and has strong data processing capacity at the "end" devices.
