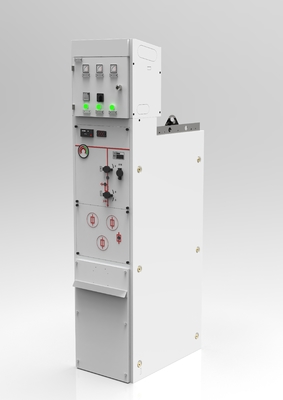

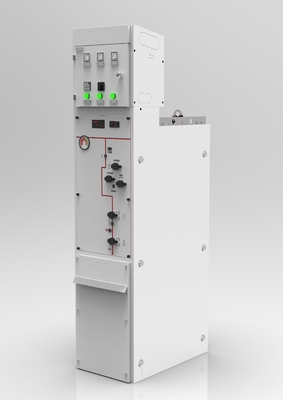

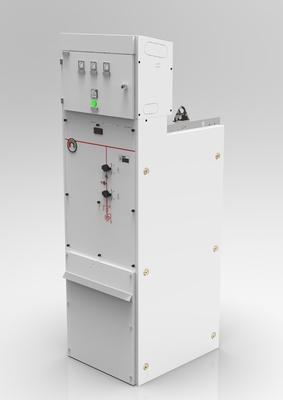

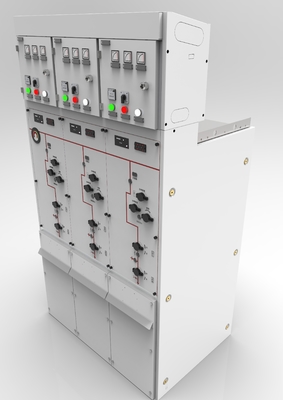

24kV QLG Series SF6 Gas Insulated RMU

Name: 24kV QLG Series SF6 Gas Insulated RMU
Brand: Beijing Qingchang power Technology Co.,Ltd
Availability: InStock

Brand Name:	Qingchang

Detail Information

Product Description

Detail Information

Place of Origin:

China

Insulation Method:

Gas Insulated

Voltage Level:

24kV

Highlight:

24kv rmu sf6

QLG Series rmu sf6

gas insulated gis ring main unit

Product Description

Typical primary plan

24kV QLG Series SF6 Gas Insulated RMU 0

24kV QLG Series SF6 Gas Insulated RMU 1

24kV QLG Series SF6 Gas Insulated RMU 2

Rated Parameters

Product Overview

QLG series ring main unit is a SF6 gas insulated metal enclosed switchgear independently developed and produced by our company. The equipment uses SF6 gas as insulation and breaking medium, and the load switch, vacuum circuit breaker and live busbar are all sealed in a closed stainless steel container filled with a certain pressure. The external American standard / European standard bushing is connected with the incoming and outgoing cable through the cable joint to form a fully insulated and fully closed structure. This effectively prevents flooding and withstands contamination, making it suitable for various harsh environments. The product is widely used in 24kV ring network or terminal power supply system.

Product Features

Modular and expandable

The use of expansion modules in coordination allows for up to five modules with the same gas tank. Beyond that, further expansion is achieved through busbar expansion.

Maintenance Free

SF6 gas integrated structure, with moving and static contacts, arc extinguishing chamber, busbar sealed in the same gas tank. It is designed for a maintenance-free life of 30 years.

Reliable Mechanical Interlock

It has a variety of reliable mechanical interlocks, and there are analog signs on the cabinet panel to fully ensure the safety of operation.

Automatic and Intelligent

Cooperate with DTU to realize automatic and intelligent control.
